    SB34, SB36 high and low basket filters

    Basket filters can only be installed on horizontal pipes, and larger and heavier basket filters need to be fitted with supports. When a basket filter is used in a steam system, a lot of condensate will be generated inside the filter, so the filter designed for use in the steam system has a condensate drain that can be fitted with a trap to remove the condensate. Basket filters are generally connected in parallel when applicable, and the fluid passes through only one of them, and can be switched to the other filter when it is to be cleaned without downtime.
    Download SB34, SB36 high and low basket filters
    Features

    The basket filter is characterized by a vertical filter chamber, which is generally larger than the "Y" type filter, and according to its caliber, the pressure drop through the basket filter is also lower than that of the "Y" type filter, so it is often used in liquid systems, and the ability to contain garbage and impurities is also stronger than that of the "Y" type filter, and the basket filter is also commonly used in large-diameter steam systems.

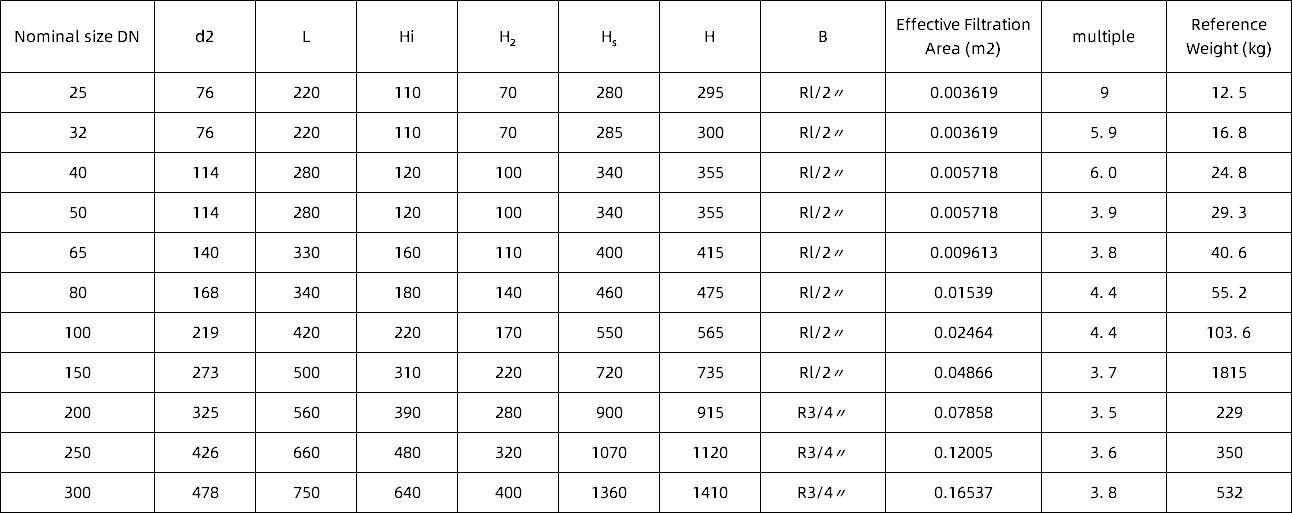

    Product Size:

    SB34_3en

    Selection cheat sheet
