    P41(2)X-10 quick exhaust valve

    Working medium: clean water

    Operating temperature: normal temperature

    Working pressure: 1.0MPa

    Nominal pressure PN: PN10

    Body: HT200

    Float: 304 stainless steel

    Body strength pressure: 1.6MPa

    Air seal test pressure: 0.05MPa~1.6MPa no water leakage

    Download P41(2)X-10 quick exhaust valve
    Features

    (1) It can remove the gas in the pipeline, reduce the resistance, and save energy.

    (2) The exhaust capacity is many times that of the ordinary double-port exhaust valve.

    (3) When the pipeline is under negative pressure, this product can quickly and automatically suction to prevent the pipeline from making an exception.

    (4) The float is stainless steel, which has a long service life, safe and reliable.


    Product Structure:

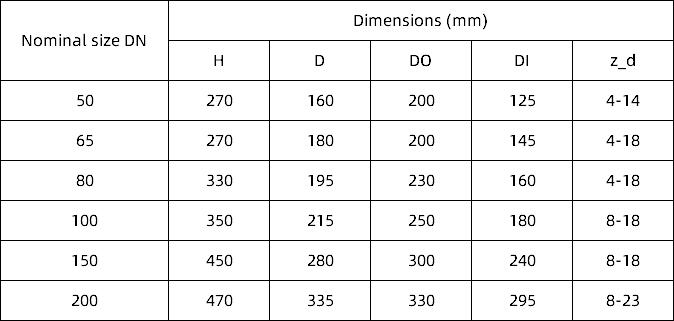

    Main Dimensions:

    P41_3en

    Selection cheat sheet
